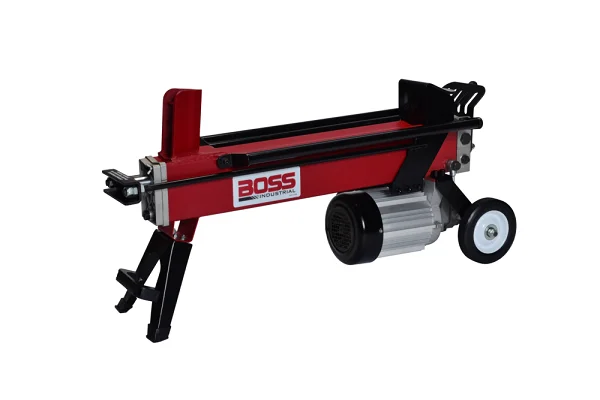

The Boss Industrial EC5T20 Electric Log Splitter is perfect for smaller log-splitting applications. This steel log splitter features one-handed operation and wide, rugged log trays make this easy for anyone to use. No emissions, no gas, no problems.
- Strong Steel Construction- fixed wedge log splitters areto last.
- Emissions FREE – Use in your garage or outside near the wood pile
- Extremely Portable – Solid rubber wheels on a light weight design
- Automatic ram return
- Lightweight and portable
- Extra wide tube log trays
Specifications:
| Motor | 1.8 hp, 115Volt, 60 Hz, 3400 rpm 12A |
| Max Splitting Force | 5 ton |
| Max Splitting Length | 20.5 in. |
| Splitting Wedge Height | 5 in. |
| Hydraulic Pressure | 2700 psi |
| Splitting Cycle (Forward / Return) | 9 / 5 seconds |
| Oil Capacity | 4 quarts (included) |
| Wheel | 6 in w/metal hub |
| One Hand Operation | Yes |
| Auto Return | Yes |
| No Assembly Required | Yes |
| Power cable | SJTW 14 AWG (2.08mm2) |
| Cord length | 5.5 ft |
| Cylinder bore | 2.2 in |
| Max cylinder stroke | 17 in |
| Net Weight / Gross Weight | 107 / 112 lbs |
| Machine dimensions (LxWxH)(in) | 38 x 11 x 19 |
| Packing Size (LxWxH) | 40 x 12 x 20 |
*Tonnage and cycle times may vary dependent upon electricity supply, mechanical and environmental conditions
