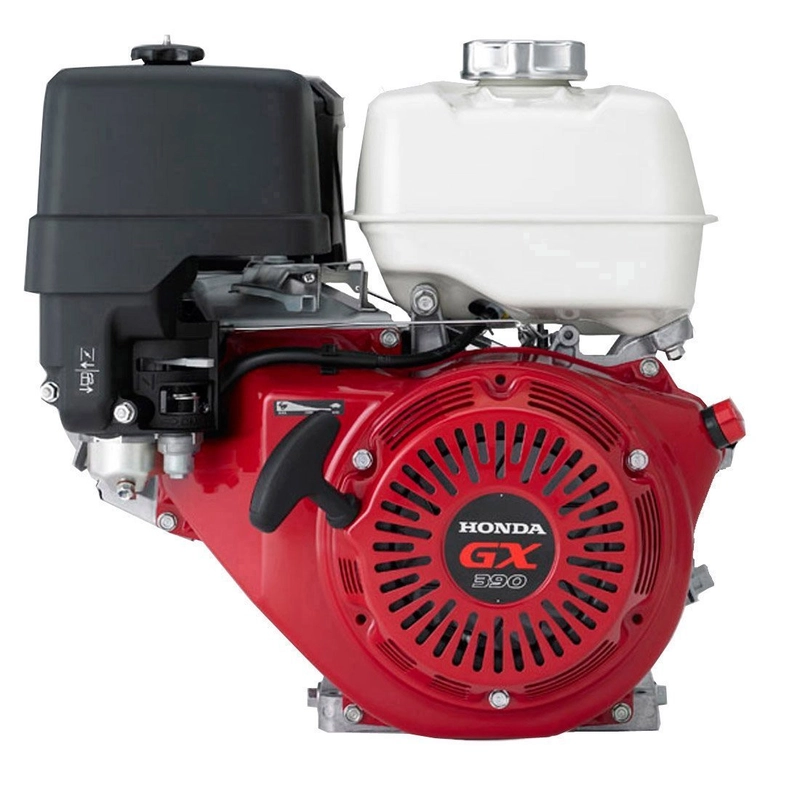

(GX390) Honda Horizontal Engine-390cc w/ Cyclone Air Cleaner
Sale!

(GX390) Honda Horizontal Engine-390cc w/ Cyclone Air Cleaner

Original price was: $979.99.Current price is: $195.99.

SKU: 6689162592353 Category:

Description

With the GX390, you’re looking at one of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some. The addition of the Cyclone air filter helps with applications that will generate lots of debris.

Common Applications:

  • Pressure washers
  • Commercial lawn and garden equipment
  • Tillers / cultivators
  • Generators
  • Forestry equipment
  • Construction / industrial equipment
  • Agricultural equipment
  • Small vehicles
  • Water pumps

Features

Fuel Efficient, High Output Operation

  • Digital CDI ignition system with variable timing
  • Increased compression ratio
  • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
  • OHV design for increased efficiency and optimal power transfer

Smooth Performance

  • Precision engineered components result in lower vibration
  • Ball bearing supported crankshaft for greater stability
  • Heavy duty balancer shaft
  • Improved piston design

Exceptionally Quiet

  • Large capacity, multi-chamber exhaust system
  • Improved camshaft and muffler reduce overall engine noise by up to 5 dB
  • Reduced mechanical noise due to piston design
  • Forged steel crankshaft and rigid crankcase
  • Helical cut gears
  • Sophisticated air intake system

Proven Reliability

  • Oil Alert
  • Cast iron cylinder sleeve
  • High quality materials, fit, and finish
  • Dual element air cleaner
  • Fuel Valve
  • 3-Year Limited Warranty

Easy to Use and Maintain

  • Simple throttle control
  • Large fuel tanks
  • Large automotive type fuel cap
  • Dual oil drains and fill
  • Easy, convenient, heavy duty control box
  • Easily accessible spark plug

Easy Starting

  • Heavy duty recoil starter
  • Automatic mechanical de-compression system
  • Variable ignition timing

Emissions Compliant

  • CARB and EPA certified
  • No catalyst necessary

SPECIFICATIONS

Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 86 x 64 mm
Displacement 389 cm3
Net Power Output 11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8:2:1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 10A, 18A
Carburetor Butterfly Float Type
Ignition System Digital CDI with variable timing
Starting System Recoil/electric
Lubrication System Splash
Governor System Centrifugal Mass Type
Air Cleaner Cyclone Air Filter
Oil Capacity 1.16 US qt (1.1 L)
Fuel Tank Capacity 6.4 U.S. qts (6.1 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 69 lbs (31.5 kg)
Dimensions 16″L x 19.1″W x 17.7″H

If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
