Designed to meet the demands of rental customers and create revenue for rental store owners. This kit assembles the most commonly used adapters, chucks, and drive caps; used to drive t-post, fence post, pipe, tube, and channel into a variety of soil types. The bolt-on chuck allows the Rental Pro Kit to adapt to many different post shapes and sizes.
Features and Benefits :
– The compact, lightweight unit reduces user fatigue.– Honda GX35 4 stroke engine eliminates the need to mix gas.
– Includes a square chuck with 2 drive caps for square tube breakaway signposts, 2¼” and 2½”. Additional sizes available
– Slotted Chuck included for Channel Posts.
– Accommodates the most frequently-driven municipal signposts.
– The design includes ergonomically balanced cushioned grip handles with Rhino® CIS™ anti-vibration dampening for operator comfort.
– The Rhino Chuck Lok™ system includes 1″, 1¾” and 2″ adapters that allow the operator to quickly adjust to driving different post sizes in the field.
– Made in the U.S.A.
– The Rhino® Pro-Series Transport Cart serves as storage and a display when not being rented.

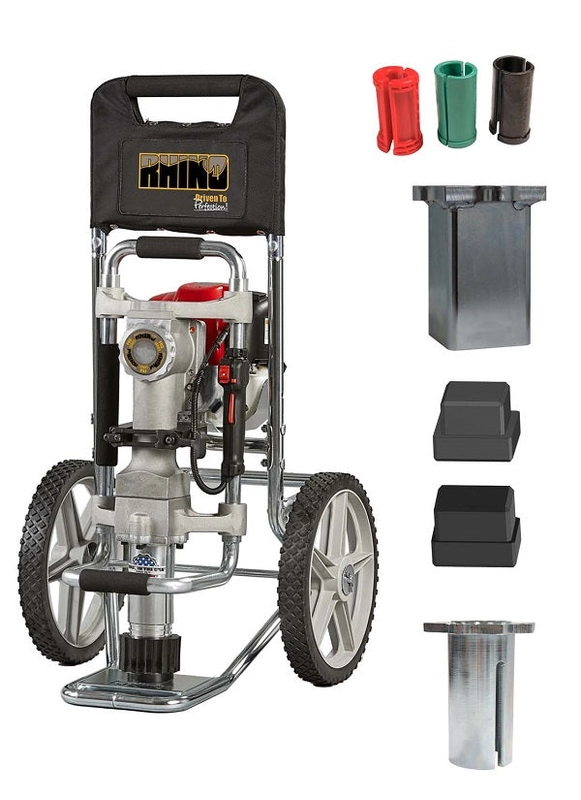

This kit includes:
- Rhino Multi-Pro XA Post Driver
- Pro-Series Gas Post Driver Transport Cart
- Multi-Pro Slotted Chuck
- Multi-Pro XA Square Chuck
- Drive Cap for 2-1/4″ Square Tube
- Drive Cap for 2-1/2″ Square Anchor Tube
- (1) Rhino Chuck-Lok System 2″ (50.8 mm) Adapter
- (1) Rhino Chuck-Lok System 1-3/4″ (44.4 mm) Adapter
- (1) Rhino Chuck-Lok System 1″ (25.4 mm) Adapter
- Rhino Multi-Pro Service Kit
Specifications:
| Dimensions inches (mm) Post Driver with Cart | 32-1/2″ x 16-3/8″ x 14-3/4″ (825.5 x 415.92 x 374.65) |
| Weight (kg) | Post Driver – 47.25 lbs (27.43) |
| Weight (kg) | Cart – 23 lbs (10) |
| Engine | Honda GX35 4-stroke |
| Performance (Approx.) | BPM (Beats per Min.) 1720 |
| Engine Configuration | 4-stroke, 35.8 cc |
| Fuel | Unleaded Gas, 86 octane or higher |
| Fuel Capacity – U.S. QT (ltr) | 0.67 (0.63) |
| Engine Oil | SAE 10W-30 |
Applications:
| Types & Sizes of Posts (outside dimensions) | Chuck or Adapter |
|---|---|
| T-Post | 1-3/4″ Adapter |
| Ground Rod (1/2″ and 3/4″) | 1″ Adapter |
| Concrete Form Pin 1″ | 1″ Adapter |
| Round Pipe 1″ to 1-5/8″ | 1-3/4″ Adapter |
| Round Pipe 1-3/4″ to 1-7/8″ | 2″ Adapter |
| Round Pipe 2″ to 2-3/8″ | Extended Master Chuck |
| Square Tube 1-3/4″ to 2-1/2″ | Square Anchor Chuck (with drive cap) |
| Channel Post 1.2 to 4 lbs/ft | Slotted Chuck |
| Silt Fence or Snow Fence | Slotted Chuck |
