Description

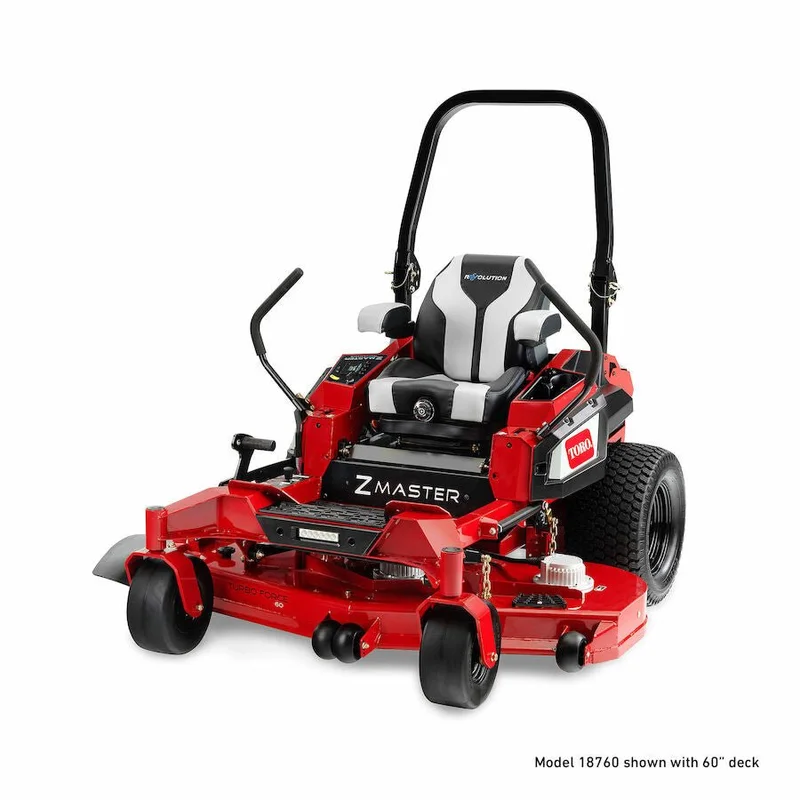

The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.
- Optimize machine feel and response, including speed control, with patent-pending software controls.
- Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
- Toro’s Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
- Optimize run time and quality of cut with the adjustable deck rake.
0 || )”>SPECIFICATIONS
0 || )”>
| Battery Capacity | 23.4kWh |
| Battery Charge Time (hours) | 6 |
| Battery Power | Toro HyperCell |
| Battery Run Time (Hours) | 4.5 – 7+ hours |
| Blade Design | 0.204 in. / 0.518 cm |
| Blade Tip Speed | Adjustable |
| Brake System | Integrated in Transmission Automatic |
| CARB Compliant | CARB Compliant |
| Caster Tires | 13 in. x 6.5 in. – 6 in. (33 cm x 16.5 cm – 15.2 cm) Flat-Free Semi-Pneumatic, 13″ x 6.5″ – 6″ (33 x 16.5 – 15.2 cm) Flat-free semi-pneumatic |
| Charge Type | 3.3kW 240V Standard; 1.2KW 120V Optional |
| Comfort Platform | Standard Suspension |
| Cutting Width | 48 in. / 122 cm |
| Deck Design | 48″ (121.9 cm) 7-Gauge High-Strength Steel TURBO FORCE® |
| Deck Material | 7 Gauge High-Strength Steel |
| Discharge Chute | Rubber |
| Drive Tires | Super Turf 24 in. x 9.5 in. x 12 in. (61 cm x 24.1 cm – 30.5 cm) |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 12.0 mph / 19.3 kph |
| Fuel Type | Battery |
| Height of Cut | 1.5 – 5.5 in. / 3.8 – 14.0 cm |
| Hour Meter | Standard Hour Meter |
| Ignition | Electric |
| Lighting | LED Headlights |
| Motor | Mid-Mount Commercial High Torque |
| Mower Type | Zero Turn Mower |
| Number of Batteries Included | 10 |
| Product Features | Battery Powered, CARB Compliant, Hour Meter |
| Product Use | Commercial |
| Roll-Over Protection (ROPS) | Folding; Standard |
| Seat | Handcrafted Deluxe Suspension Seat with Arm Rests |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | 9 in / 22.9 cm Diameter Die-Cast Aluminum w/ Blade Retainer |
| Start Type | Electric |
| Transmission | Planetary Gearset |
FEATURES
Patent-Pending Software Controls
Optimize machine feel and response, including speed control, with patent-pending software controls.
Horizon360® Compatible
Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
All Day Runtime
Toro’s Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
Deck Rake Adjustment
Optimize run time and quality of cut with the adjustable deck rake.
