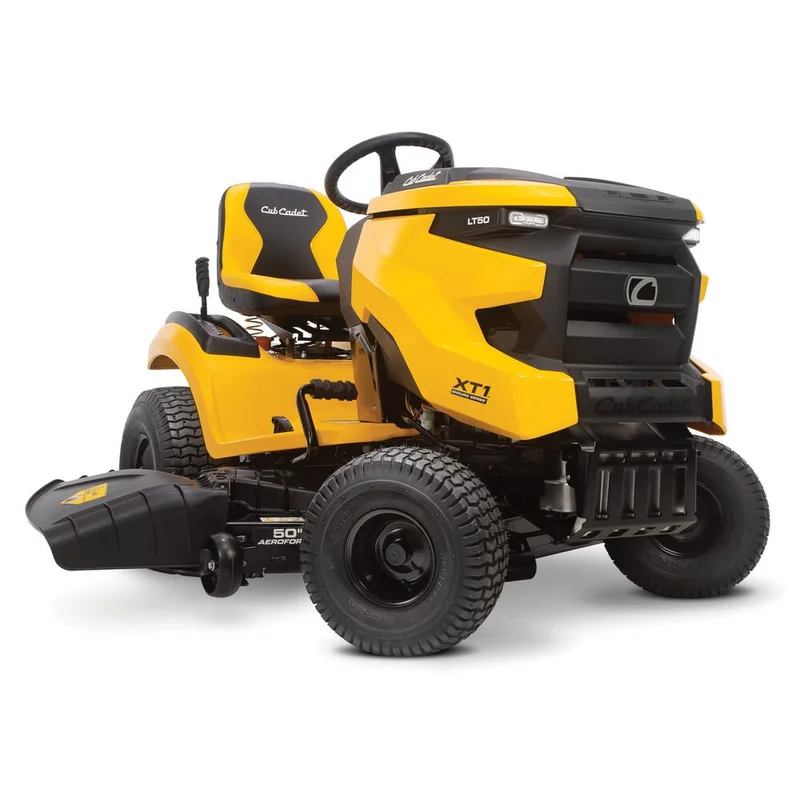

XT1 LT50 FAB Lawn Tractor

Description

Product Highlights

• The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
• 50-inch fabricated, 11-gauge, triple-blade AeroForce™ deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut™.
• Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
• 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
• Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.

Product Specifications

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series
• Engine Model Number: KT735
• Engine Displacement: 725cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.0 gal. US (11.36 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 230 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® K46
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle: 3/4″
• Drive System: Hydrostatic
• Transmission Control: Foot Pedal
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 50 in
• Deck Wash: Yes
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Manual
• Cutting Height Range1″ – 4″
• Anti-Scalping: Four gauge wheels plus roller
• Deck Positions: 12

Warranty

• Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Chassis

• Frame: Robotically welded
• Turning Radius: 16″
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15″ high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20″x 8″-8″
• Front Tires: 15″x 6″-6″
• Tire Tread: Turf Saver

Additional Specifications

• Mulch Kit: Available Separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13AQA1TLA10

Specifications

• Series: XT1® Enduro Series™

Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
